3.5mm Bezel 49 Inch 500cd/M² 3x3 Video Wall Lcd Monitors

  • 3.5mm Bezel 49 Inch 500cd/M² 3x3 Video Wall Lcd Monitors
Place of Origin Guangdong, China (Mainland)
Brand Name VETO
Certification CCC、FCC、CE
Model Number VT-AD490LY-W
Minimum Order Quantity 2
Price Negotiation
Packaging Details Packed in carton with EPE and foam, carton in wooden case.
Delivery Time 5-7 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 piece/pieces per Month
Product Details
Panel Size 49 Inch Display Dimension 1073.78*604 Mm(H*V)
Resolution 1920×1080 Brightness 450 Cd/m² Optional
Visual Angle 178°(H) / 178°(V) Response Time ≤6ms
High Light

3x3 Video Wall Lcd Monitors

,

500cd/M² Video Wall Lcd Monitors

,

3.5mm Bezel Industrial Lcd Screen
Leave a Message
Product Description

49 inch indoor LCD 2x3 3x3 commercial seamless video tv wall



LCD video wall main features:
1. Ultra-thin and narrow-edge design, easy to use and beautiful；
2. Using a special industrial LCD screen, high brightness. High contrast, high definition；
3. With VGA status image re-display rate automatic adjustment function;；
4. Adopt t.uality digital processing circuit, namely 3D digital comb filter and Adopt the latest 3D image quality digital processing circuit, namely 3D image quality digital processing circuit, namely 3D digital comb filter and 3D digital image noise reduction technology, the image is clear and the angle of view is wide;
5. 178° wide viewing angle, color graphics are not deformed；
6. 6ms fast response time, the picture is really no tailing;
7. Built-in power supply, low energy consumption, LCD screen life can reach more than 60,000 hours
8. Ultra-quiet cooling fan design, the whole machine has a longer life；
9.Multiple signal interfaces: HDMI/VGA/DVI/AV/SDI (SDI monitor series)；


49 inch splice screen specification:

Panel ITEM NO. LD490DUN-THC1
LCD SIZE 49"
LCD Supplier LG Display CO.,Ltd.
Backlight LED
Resolution 1920 x 1080 (pixels)
Brightness (typ)/(min) 500cd/m² nits (typ.)
Contrast Ratio (typ) 1400:1 (typ.)
Response time (ms) 8ms (typ.)
Pixel Pitch 0.63(H)mm x 0.63(V)mm
Frame frequency 60 Hz
Viewing Angle 178°(H) / 178°(V)
Lifetime(typ)/(min) 60,000 hrs (min.)
Display area 1074.1(H)mm x 604.3(V)mm
Color 1.67M
Power Voltage 100 V ~ 240 V, 50-60 Hz
Power consumption ≤180W
Standby (Watt) ≤0.5W
T / H Operating Temperature(℃) 0℃～60℃
Storage Temperature(℃) -10℃～70℃
Storage Humidity 10%～90% RH Non-Condensing
Operating Humidity 5～95% RH Non-Condensing
Display Mode Standard,Soft,User,Bright
Using time(Hours/days) 24hours*7days
IN/OUT SINGNAL CVBS input *1
HDMI input *1
DVI input *1
VGA input *1
Others RS232 Input: RS232 x1; Output: RS232 x2
Language Outline size(WxHxD) 1077.58 * 607.8* 62.7 mm
Appearance color Black
Casing material Metal
Bezel 3.5mm
Attachment OSD English / Chinese / Others
IN/OUT SINGNAL Remote Controller *1
Cable *1
Certificate of quality *1
Instruction book *1
Warranty card *1






Size:46, 49, 55 inch optional

VETO commercial LCD splicing screen is dedicated to security monitoring, business, entertainment industry to provide high quality products and solutions using the most outstanding samsung, LG and other well-known brand LCD splicing panel, combined with micro figure technology (VETO) ultra narrow side of the LCD splicing technology, signal switching technology, image splicing processing technology of integrated application of a set of functions such as diversification, intelligence, leaning into the first simple LCD splicing display system, show a high for the customer and degrees, no interference of high-quality LCD splicing large screen.

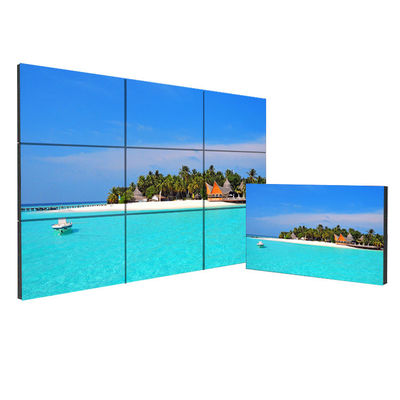

The picture below shows a 49 inch 3x3 450 nits floor stand LCD video wall:

3.5mm Bezel 49 Inch 500cd/M² 3x3 Video Wall Lcd Monitors 0



There are many options for the splicing wall, 1x2, 1x3, 2x2, 2x3, 3x3, 3x4, etc. We will customize the solution according to the customer's requirements. For more details, please contact our customer service, thank you.



The reason why choose us ?
1 . We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products .
2 . We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service online 24 hours for customers .
3 . We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly .
4 . Samples are always available for checking quality and can be dispatched to you very quickly .
5 . Design ability :artwork / Instruction manual / product design according to customer's requirement .
6 . We have our own ERP systems :Shorten lead times at low cost with responsive production planning .
7 . Warranty (1-3 year) .
