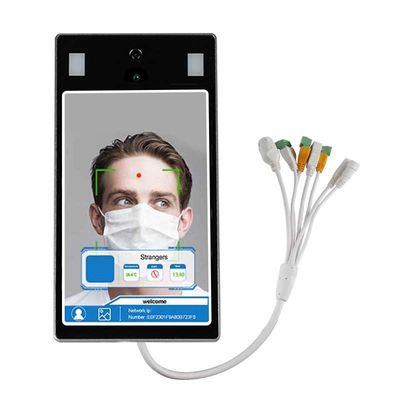

Biometric Facial Recognition Temperature Measurement Access Control

Place of Origin Guangdong, China (Mainland)
Brand Name VETO
Certification CCC、FCC、CE
Model Number VT-800IFR
Minimum Order Quantity 1
Price Negotiation
Packaging Details Packed in carton with EPE and foam, carton in wooden case.
Delivery Time 3-10 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 piece/pieces per Month
Product Details
Panel Size 8 Inch Size 215x125x20mm
Detect Distance 0.1m~0.4m Power DC12V
Application Indoor Brightness 350cd/m2
GPU Mali-T764 Working Temperature 0°C ~50°C
Certification CE, FCC, RoHS, ISO9001 Power Consumption 10W
High Light

10W Facial Recognition Temperature Measurement

,

Facial Recognition Temperature Measurement 350cd/m2

,

DC12V Biometric Access Control Thermometer

Leave a Message
Product Description

Automatic Infrared Body Temperature Thermal Scanner Kiosk



Product Features:

    • 【Non-contact Infrared Temperature Measurement/Contactless Body Temperature Detection Terminal】Thermopile Sensors are from Heimann , They are thermopile sensors with integrated signal processing which are consisting of radiation detecting sensor chips and integrated circuits in same housing.Temperature measurement range is 30-45℃/86-113°F Accuracy ± 0.3℃,fast and high effect, High-precision infrared human temperature detection,Temperature Measurement and Face recognition time is less than 500ms.
    • 【High-precision Face Recognition & Face Mask Wearing Alert】Supporting max 22400 face comparison library and 100,000 face recognition records, face recognition accuracy is more than 99.5%, it can be integrated with security systems/Access Control System. It also works as a standalone unit. The interface is pretty easy to navigate.If someone does not wear a mask, the device will prompt a voice reminder:“Please wear mask!” At the same time, the authentication or attendance is valid.
    • 【Abnormal High Temperature Alarm】Supports Centigrade or Fahrenheit, High temperature alarm value can be set, real-time warning of high Temperature.Triggers prompt voice reminder when detecting abnormal temperature, configurable door status (open/close) when detecting abnormal temperature.Supporting electronic voice broadcasting (normal human body temperature or super high alarm, face recognition verification results);Automatically identify unmasked personnel and real-time voice alarm reminder.
    • 【Ensures A Safe & Healthy Environment】Vertical human body temperature measuring face recognition access control terminal support access control, attendance, health management system, which can be used in gate channel and access control attendance to achieve safe and efficient access control of personnel.Face recognition access control terminal detection distance of 0.3-1.8 meters. Fast and High precision,non-contact,more convenient
    • 【Backstage Software Management】Support IE browser settings and computer client management software.Personnel date collection, automatic generation of body temperature and face recognition report, real-time query and export. It is suitable for customs, government, airports, railway stations, enterprises, buses, office areas, hotel gates, office buildings, schools, shops, communities and other crowded public places. EXMAX provide professional technical support and 2 years quality Warranty.




Tech specifications





Name Smart LCD Display/Temperature verification kiosk(new A type)
Function Temp detection,mask detection,attendance, touch, Staff ID card, wifi
Model No. VT-AD0801XD
Details
Panel 8inch LCD screen
  Resolution: 1280*800
  Front face temper glass
  10 points capacitive touch
Temp
Sensor
Sensor Thermal imaging infrared temperature sensor
  Temperature measurement Accuracy: ±0.3℃
  Detect distance 0.2m~1m
  FOV field of view <30 degree
  Well known brand Melexis from Belgium
Camera Sensor type 1/2.7” COMS
  Resolution 1920*1080
  Dynamic range ≥120dB
  Effective focal length 4.43mm
  Aperture 2.0
  Field angle 72°
  distortion <1.5%
  Type Binocular camera, color and infrared
Operation system CPU Android RK3288,4 core ARM-A17,1.8GHz
  GPU Mali-T764
  RAM DDR 2GB
  ROM EMMC 8G
  OS Android 7.1.2
  Network support Ethernet,WIFI,BT-4.1
  Bluetooth Yes
IC card Support IC card with standard of ISO14443A; Mifare1; 13.56MHz
Microphone Yes
AI algorithm Max storage pictures Max. 50,000pieces
  Recognition speed ≤500ms
  Live detection Support
  Mask detection Support
  Abnormal temperature alarm Support
Interfaces Power DC12V*2(one for device, one for led lamp at base)
  Network 10/100BaseT RJ45*1
  Wiegan Output*1(RS232), input*1
  Relay 1
  USB host 1
  USB OTG 1
  Speaker 8Ω2W
Working environment working temperature 0°C ~50°C
  Working humidity 0%-90% RH
  Power Consumption 10W




Package detail
Head only 39*19.5*13CM
    3kg
  Desktop base 44*42*21CM
    5.5kg
  Floor stand pole 115*16*13CM
    6kg
  Floor stand base 38*31*5CM
    8kg

Certification

/

CE, FCC, RoHS, ISO9001

Language

Voice/Screen/Software
Default English.Support: Chinese, English, Cantonese, Australian, French, Italian, Japanese, Korean, Spanish, Turkish, etc.
Pedestal with LED lamp Yes( for freestanding type)
Battery powered Optional


Hand Sanitizer Machine

Optional (support gel or alcohol)



  Powered by dry battery
  Volume 1 L with 1ml out every time






Scope of application:
Can be widely used in aisles, gates, gates and other controlled entrances or areas.
