| MOQ: | 2 |
| Price: | Negotiation |
| Standard Packaging: | Packed in carton with EPE and foam, carton in wooden case. |
| Delivery Period: | 7-10 work days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 piece/pieces per Month |

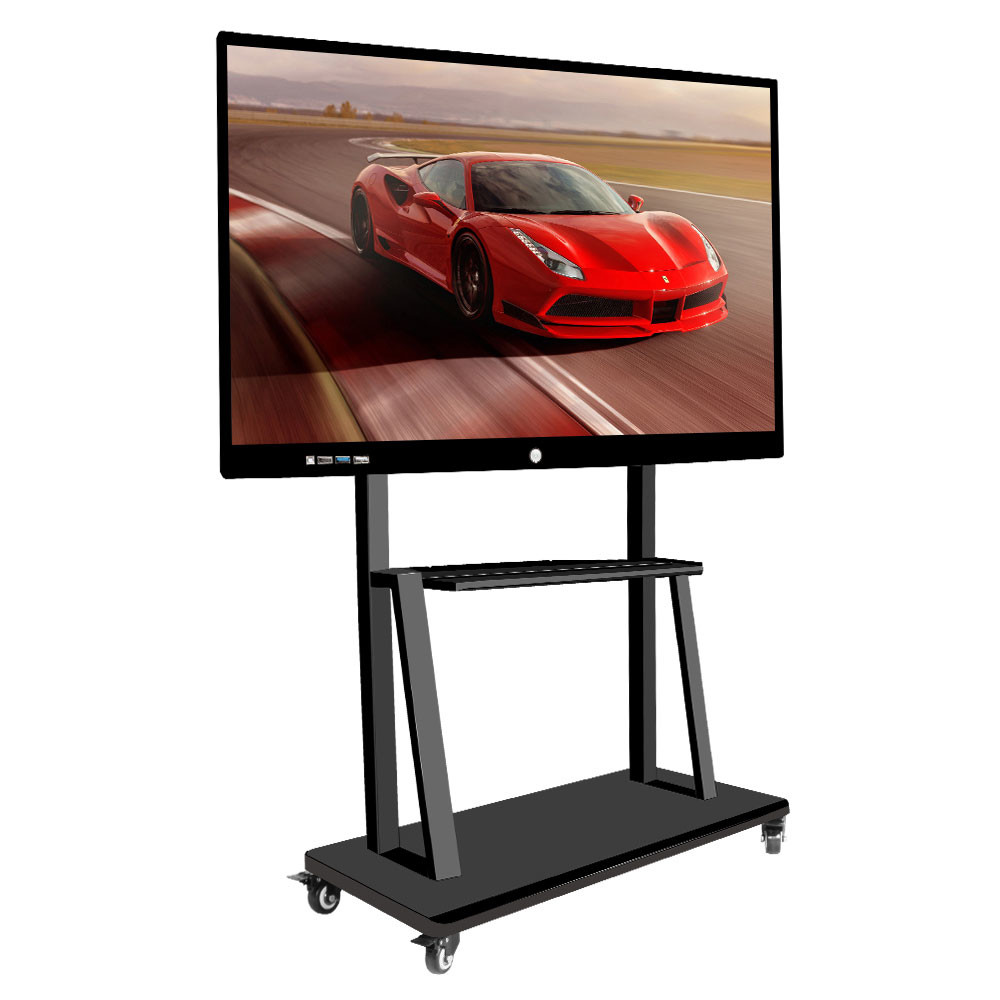

86 inch Smart digital board flat panel interactive whiteboard
Modular Design:
★ Ultra-thin modular metal body design
★ Rich external expansion interface design, very convenient maintenance!
Computer Configuration:
★ Customers choose high/medium/low-end computer configuration according to their needs
★ Touch:2/4/6/10/20 point optional infrared touch
★ Size:55“,65“,75”,85”,98”(LED Backlit screen)
| Specification | |||||
| Dimension | 1961×1162×96.5mm(W*H*T) | Packing Size | 2115×1342×260mm(W*H*T) | ||
| Panel Size | 86 inch | Panel Brand | LG | ||
| Display Area | 1895.04mm×1065.96mm(W*H) | Pixel Pitch | 0.4875mm×0.4875mm(W*H) | ||
| Resolution | 3840×2160 (RGB) (4K) | Brightness | 410cd/m2 | ||
| Contrast | 1200:1 | Viewing Angle | 178°(H)/ 178°(V) | ||
| Response Time | 8ms | Display Color | 10 bit/ 1.07 Billion | ||
| Backlight | DLED | Life of Panel | ≥50000 Hours | ||
| Rated Power | 380W | Power Supply | AC100V-240V, 50/60Hz | ||
| Speaker | 8Ω/15W*2 | N. W. / G. W. | 80KG/ 106KG | ||
| Android System | |||||
| Android Version | Android 5.0, Android 6.0(Max) | ROM | 32G | ||
| Chip Set | MSD6A 828 | RAM | 2G | ||
| Functional Terminals |
HDMI*3 ( 1*At Front Side) USB3.0*3 ( 1*At Front Side) SD*1 AV in*1 ( 1 Transfer 3 ) AV out*1 ( 1 Transfer 3 ) YPbPr*1 ( 1Transfer 3 ) |
RJ45*2(Input,Output) SPDIF*1 VGA in*1 Audio Input*1 VGA Out*1 Audio Output*1 |
Touch USB*1(At Front Side) RS232*1 RF*1 WIFI*1 Microphone*1 (4K Default Built-in OPS) |
||
| Multi Media Support | Audio: MP3,WMA,WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format | ||||
| Video: Support H.264,VP8,RV,WMV,AVS,H.263, MPEG4 Etc video format 1080P decoding | |||||
| Image: Support browse of JPG, BMP, PNG etc other kinds of image format and support to rotate /Slide show/Image zoom function | |||||
| Specification of the Touch Screen | |||||
| Touch Tech | Infrared Touch | Accuracy | 1.5mm | ||
| Installation | Built-in Integrated | Writing Tool | Finger, Styli≥8mm Opaque Object | ||
| Touch Points | 10 Points | Tempered Glass | 4mm | ||
| Response Time | ≤5ms | Drive | Drive Free | ||
| Communication method | USB | Life | ≥60 Million Touch | ||
| Specification of OPS | |||||
| Main Board Series and PC | Intel HM76 | 2nd Generation CPU | Intel i3/ i5/ i7Available | ||
| Intel H81 | 4th Generation CPU | Intel i3/ i5/ i7Available | |||
| Intel H110 | 7th Generation CPU | Intel i3/ i5/ i7Available | |||
| Graphic Chip | Intel Graphics HD3000 | RAM | DDRⅢ 4G | ||
| WIFI | MINI PCIE 802.11 A/B/G | ROM | 2.5’’ SATA2 500GHHD / 128G SSD | ||
| Network Interface (RJ45) | 1 | USB Interface | USB3.0*2, USB2.0*2(Front Extension*2) | ||
| VGA Interface | 1 | HDMI Interface | 1 | ||
| Headphone jack | 1 | Microphone interface | 1 | ||
| Wireless Keyboard and Mouse Set | Optional (Default without) | Power Button | 1 | ||
| NOTE: PC is Optional, Main board and Graphics Card can be customized according to client’s requirement. It can be equipped with a PC or not equipped with a PC according to customer needs. | |||||
| Packing List | |||||
| Name | With OPS | Without OPS | |||
| Specification | Quantity | Specification | Quantity | ||
| Touch Screen Monitor | 86’’ Touch Screen Monitor | 1 | 86’’ Touch Screen Monitor | 1 | |
| Windows System | Customized | 1 | No | No | |
| Remote Control | English Version (Without Battery) | 1 | English Version (Without Battery) | 1 | |
| Power Cord | 2M | 1 | 2M | 1 | |
| HDMI Extension Cable | Optional (Default Without) | 1 | No | No | |
| Touch USB Extension Cable | Optional (Default Without) | 1 | No | No | |
|
Warranty Card Certificate |
English Version | 1 | English Version | 1 | |
| Wall Mount Bracket | A84 Wall Mount Bracket | 1 | A84 Wall Mount Bracket | 1 | |
| Stylus | 1 | 1 | |||
FAQ:
1. Q: Are you a factory or trading company ?
A: We are a OEM/ODM factory .
2. Q: What payment methods your company accept ?
A: We accept most ofthe payment methods , but mainly accept T/T ,L/C ,Western Union,Paypal and MoneyGram .
3. Q: How long is the warranty time for your products ?
A: Our officially promised warranty time is one whole year after delivery at best .If a longer warranty period is required to increase the corresponding cost , the warranty period can be up to 3 years .
4. Q: what's the shipment terms and delivery time of your company ?
A: Well, they depends on the quantity of your order . As you know ,we need time to manufacture the machines.but mostly , the shipment time is 3-8 working days after delivery . For Delivery way , for Sample and Bulk order < 100KG , we will kindly suggestExpress and Air freight , when Air freight and Sea shipping for Bulk order >100KG .As for detailed cost , it depends on your final order .
5. Q: Do you give any discount ?
A: I'll surely try my best to help you get those by the best price and good service at the same time .
6. Q: I would like to ask you if it's possible to have my logo on the product .
A: We hope you know that our company VETO perfectly support customized logo service . But we will decide whether to increase the additional cost according to the logo that the customer needs .
|
|
